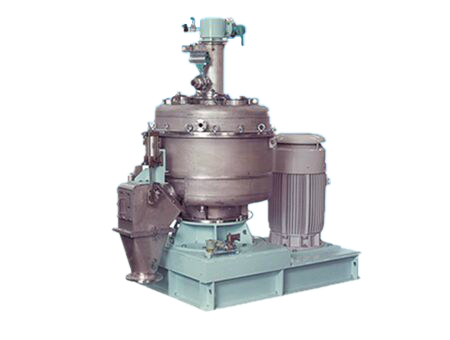

ZSJ series mechanical fusion machine enables two substances to be integrated together completely fully using the form of physical processing, which is a kind of brand-new concept. By use of external mechanical force, a material is completely dependent (or set) on another material, so as to form a new kind of material. The new material contains the characteristics of such two kinds of materials.
A vibrating compactor can also be used for rounding remoulding of particles. The generated particles not only have a certain roundness, but also the bulk density can be increased.
Another purpose of the vibrating compactor is used as mixing machine. As a general powder mixing machine has a limited degree of homogenization, a small batch of individual additive cannot be evenly dispersed in the powder. A traditional solution is to increase the amount of additives. However, if the value of the additive itself is very high, or it will cause other side effects, such a mechanical fusion machine can be used to replace the traditional way of mixing.
Scope of application: lithium battery materials, nickel metal hydride materials, electronic components, electrical components, ceramic components, charcoal powder, cosmetics, paints, magnets, fuel cells, biological materials, thermal materials, powder metal, aerospace thermal insulation materials and cement material, etc.
Technical parameters:
| Model |
Power（kw） |
Speed（rpm） |
Loading quantity（L） |
| ZSJ-6 |
4 |
2000 |
2 |
| ZSJ-300 |
30 |
1500 |
15~20 |
| ZSJ-600 |
75 |
1100 |
30~35 |
